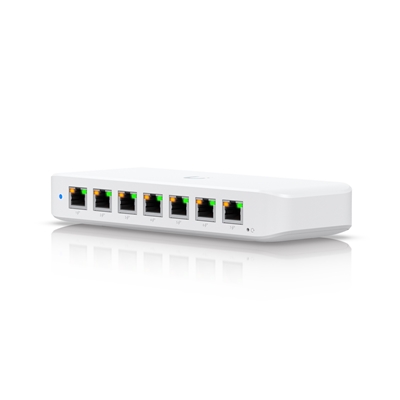

Ubiquiti USW-ULTRA UniFi Switch Ultra POE++ Powered 8 Port Gigabit POE Managed Network Switch (No PSU)

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

(7) GbE PoE+ output ports
(1) GbE PoE++ input port
? 42W PoE availability with PoE++ input
? 16W PoE availability with PoE+ input

Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")

Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)

Enclosure Material
Polycarbonate

Management Interface
Ethernet In-Band

Networking Interface
(8) GbE RJ45 ports

POE Interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-Blocking Throughput
8 Gbps

Switching Capacity
16 Gbps

Forwarding Rate
11.904 Mpps

Power Method
(1) 54V, 3.9A power adapter (Not included)
(1) 54V, 1.1A power adapter (Not included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Supported Voltage Range
44?57V DC

Max Power Consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)

Total Available POE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W

Max PoE+ Wattage per Port by PSE
30W

Button
Factory Reset

Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

• Speed: Gigabit
• Ports: 8
• POE Capability: 48v
• Managed or Unmanaged: Managed
• Rack Mountable: No
