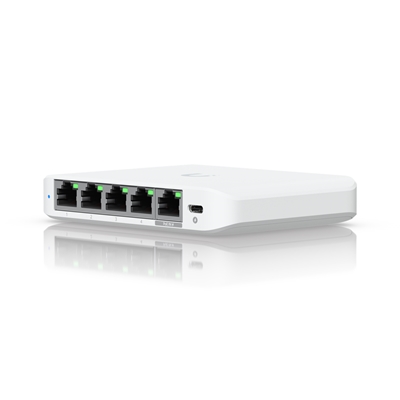

Ubiquiti USW-FLEX-2.5G-5 UniFi Flex 2.5G Ultra Compact 5 Port POE/USB-C Powered Managed Switch

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter (included).

Dimensions
117.1 x 90 x 21.2 mm
(4.6 x 3.5 x 0.8")

Port Layout
2.5 GbE RJ45 x 5

Form Factor
Compact Desktop

Switching Capacity
10 Gbps

Total Non-Blocking Throughput
12.5 Gbps

Forwarding Rate
19 Mpps

Supported VLANs
256

MAC Address Table Size
4000

STP and RSTP
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast and Broadcast Rate Limiting
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

Loop Protection
Yes

Max. Power Consumption
5W (AC/DC input)
6.4W (PoE input)

Power Method
(1) USB Type-C, 5V DC, 1A
(1) PoE

Power Input Method
USB Input
PoE

Power Supply
AC/DC, external, 5W

Supported Voltage Range
4.8?5.2V DC/USB
44V?57V PoE

Management
Ethernet

Weight
206 g (7.3 oz)

Enclosure Material
Polycarbonate

Certifications
CE, FCC, IC

UniFi Network
Version 8.6.9 and later

• Speed: 2.5 GbE
• Ports: 5
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: No
