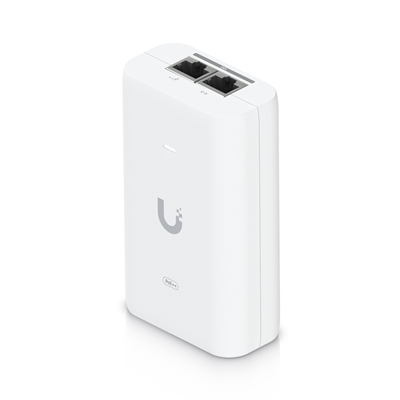

Ubiquiti UACC-POE++-10G Universal 802.3bt 10G 60W Power POE++ Injector

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight
210 g (7.4 oz)

Output Voltage
54V DC @ 1.12A

LAN Activity Indicator
No

Gigabit LAN Port
Yes, up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100?240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
88%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 2%

Load Regulation
< 5%

2-Pair Powering
No

4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance

• Product Type: POE Injector
• POE Capability: 54v
• Device Support: Universal
