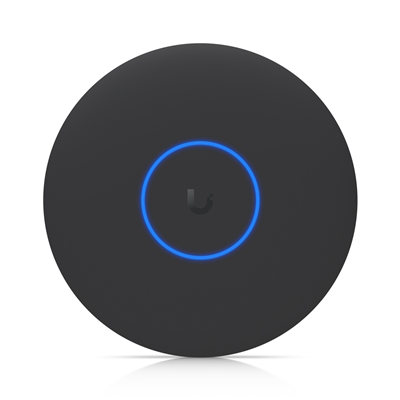

Ubiquiti U7-PRO-XG-B UniFi 7 Pro XG Ceiling Mounted 6 Stream WiFi 7 6GHz 10GbE Access Point (Black)

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
6 spatial streams
140 m2 (1,500 ft2) coverage
300+ connected devices
Powered using PoE+
10 GbE uplink

Dimensions
d206 x 32.5 mm
(d8.1 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
6

Coverage Area
140 m2 (1,500 ft2)

Max. Client Count
300+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE+

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
5 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Max. Power Consumption
22W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
750 g (1.7 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC

• Type: High Density
• Speed: 5800Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
