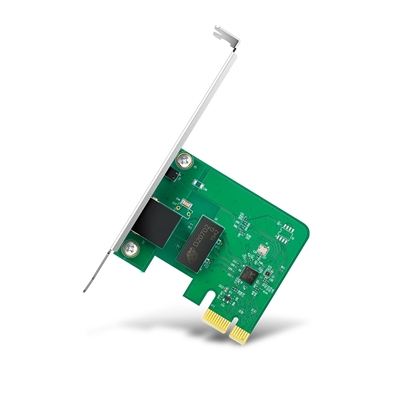

TP-Link TG-3468 Gigabit PCI-E Network Adapter

10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN

Operating System
Supports operating systems include Windows 11/10/8.1/8/7/Vista/XP

Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management

Standards and Protocols
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Interface
PCI Express, 1 x 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED
Status

Data Rates
10/100/1000Mbps for Half-Duplex mode,
20/200/2000Mbps for Full-Duplex mode

Dimensions ( W x D x H )
3.1 x 4.8 x 0.8 in (78.5 x 120.8 x 21.5mm)

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)

System Requirements
Windows 11/10/8.1/8/7

Certification
FCC, CE, RoHS, BSMI, VCCI

Package Content
Gigabit PCI Express Network Adapter TG-3468
Quick Installation Guide
Resource CD
Low-profile Bracket

• Internal/External: Internal
• Connection: PCI-E
