RGB Gaming Build AMD Ryzen 5 8500G 6 Core 12 Threads, 5.00GHz, 32GB DDR5 RAM, 256GB NVMe Storage & 1TB SSD, RTX5050, Windows 11 Home

Specification:

Operating System:Windows 11 Home - Installed
Processor: AMD Ryzen 5 8500G 3.50GHz (5.00GHz boost) 6-cores & 12 threads
Memory (RAM): ADATA 32GB DDR5 (2x16GB) (upgradeable to 64GB DDR5)
Storage: ADATA 256GB PCIE 4.0 NVMe M.2 SSD
Storage Expansion: 1 x 2.5" 1TB SSD
Graphics: Gigabyte Nvidia GeForce RTX 5050 8GB Triple Fan Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 ports
Motherboard: Gigabyte A620M
Case: Antec RGB Tower
Connections:
Front ?
1 x USB 3.0
2 x USB 2.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x DisplayPort
1 x D-Sub port
1 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks

Networking:
Wired: Realtek 1Gbps GbE LAN

Processor
AMD Ryzen 5 8500G 3.7GHz 6 Core AM5 Processor, 12 Threads, 3.5GHz up to 5.0GHz Boost, 22MB Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
3.50GHz

Boost Speed
5.00GHz

Memory
2 x Adata XPG Lancer Blade AX5U6000C4816G-SLABBK 16GB U-DIMM System Memory DDR5, 6000MHz
Voltage: 1.1V
Latency Timing: CL48
Speed: 6000MTs
2 x 16GB DIMM Memory

Memory Configuration
2 x 16GB
2 Lanes (2 occupied)

SSD Drive
Adata Legend 710 (ALEG-710-256GCS) 256GB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2100MB/s, Write 1600MB/s, Heatsink
TBW
640TB
MTBF
2,000,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 2100MB/S
Write: Up to 1600MB/S

Hard Drive
Additional Drive Fitted
PNY CS900 (SSD7CS900-1TB-RB) 1TB 2.5 Inch SSD, Sata 3 Interface, Read 450MB/s, Write 320MB/s

Optical Drive
No Optical Drive Fitted

Graphics
Gigabyte NVIDIA GeForce RTX 5050 GAMING OC 8GB, GDDR6 Graphics Card, 2560 Cuda Core, 2532MHz Core Clock, Triple Fan, 2x DisplayPorts / 2x HDMI Ports

Core Clock
2632 MHz (Reference card : 2572MHz)
CUDA Cores
2560
Memory Clock
20 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4

Graphics Card I/O
DisplayPort 1.4a x 2
HDMI 2.1 x 2

Operating System
Microsoft Windows Home - Installed

Card Reader
No Card Reader Fitted

Networking
1 x Realtek GbE LAN chip (1 Gbps/100 Mbps) on motherboard

Power Supply
DeepCool 700W 80 PLUS Standard Power Supply - Silent Operation, Reliable Protection, Efficient Power Delivery
Connections:
1x 20/?24-Pin
2x 4/8-Pin ATX12V
4x 6/?8-Pin PCIe
6x SATA
2x IDE

Motherboard
Gigabyte A620M DS3H Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN

Expansion Slot
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

Rear I/O
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x D-Sub port
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Chassis

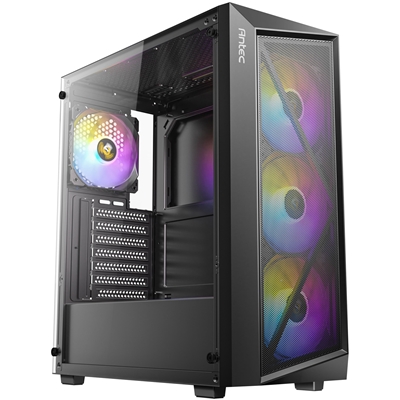

Antec AX67 ARGB Mid-Tower Gaming PC Case, Full Mesh Front, Tempered Glass, 4 x 120mm ARGB Fans

Drive Bays
Internal 3.5": 2
Internal 2.5": 2

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x Audio
Power
Reset

Cooling
3 x 120mm ARGB 3-Pin fans in the front
1 x 120mm ARGB 3-Pin fan at the rear

Dimensions
405 x 200 x 449mm(DWH)

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)

• Case Style: RGB Tower
• Processor: AMD Ryzen 5
• Processor Cores: 6
• Storage: 256GB + 1TB
• Memory: 32GB
• Graphics: RTX5050
• Operating Software: Windows 11 Home
