MERCUSYS

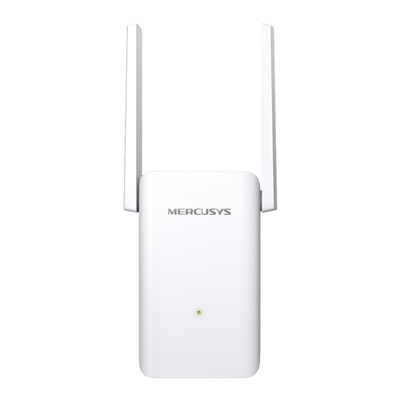

Mercusys ME80X AX3000 Wi-Fi Range Extender
£
48.97
£
40.81 excl. VAT
VAT: £
8.16
✓ In Stock
Next Day: £
6.00
3 Year Return To Base Warranty
| Stock Code | NPMER-ME80X |
|---|---|
| Part Number | ME80X |
| EAN | 6957939001124,695793 |
| Weight | 0.4 kg |
| Category | Network Products - Wireless Access Points |
Product Description
Mercusys ME80X AX3000 Wi-Fi 6 Range Extender
Dual Band Speeds up to 3000 Mbps
2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Armed with WiFi 6
Improves virtually every aspect of your network: speed, efficiency, and capacity.
Gigabit Wired Connection
Provides speedy wired connections for PCS, IPTVS.and game consoles.
Works with Any Routers
To Extend WiFi to Where You Need It Most.
Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.
Built-In Access Point Mode
Works as RE mode and AP mode.
Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Wireless
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency
2.4GHz and 5GHz
WiFi Speeds
574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
Reception Sensitivity
5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
Wireless Security
WEP, WPA, WPA2, WPA3-PSK
Hardware
Dimensions
138.6 x 100.3 x 68.4 mm
Interfaces
1 Gigabit Ethernet Port
Button
WPS / Reset Button
Antenna Type
2x External Antennas
Power
13W
Others
Certifications
RoHS
Network Services Enabled by Default
Web Server
Device configuration and management
Port: 80/443; Protocol: HTTP/HTTPS
DHCP Server
IP address assignment
Port: 67; Protocol: UDP/DHCP
SSH for APP
Port: 20001; Protocol: TCP/ssh
TMPD for APP
Manage and configure device through app
Port: 20001; Protocol: UDP/tmpd
TDP Server for APP
device discovery for app
Port: 20002; Protocol: UDP
Package Contents
Wi-Fi Range Extender ME80X
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing
Dual Band Speeds up to 3000 Mbps
2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Armed with WiFi 6
Improves virtually every aspect of your network: speed, efficiency, and capacity.
Gigabit Wired Connection
Provides speedy wired connections for PCS, IPTVS.and game consoles.
Works with Any Routers
To Extend WiFi to Where You Need It Most.
Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.
Built-In Access Point Mode
Works as RE mode and AP mode.
Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Wireless
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency
2.4GHz and 5GHz
WiFi Speeds
574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
Reception Sensitivity
5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
Wireless Security
WEP, WPA, WPA2, WPA3-PSK
Hardware
Dimensions
138.6 x 100.3 x 68.4 mm
Interfaces
1 Gigabit Ethernet Port
Button
WPS / Reset Button
Antenna Type
2x External Antennas
Power
13W
Others
Certifications
RoHS
Network Services Enabled by Default
Web Server
Device configuration and management
Port: 80/443; Protocol: HTTP/HTTPS
DHCP Server
IP address assignment
Port: 67; Protocol: UDP/DHCP
SSH for APP
Port: 20001; Protocol: TCP/ssh
TMPD for APP
Manage and configure device through app
Port: 20001; Protocol: UDP/tmpd
TDP Server for APP
device discovery for app
Port: 20002; Protocol: UDP
Package Contents
Wi-Fi Range Extender ME80X
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing
- Connection Type: Range Extender
- Speed: 3000Mbps
- Access Point: Yes
