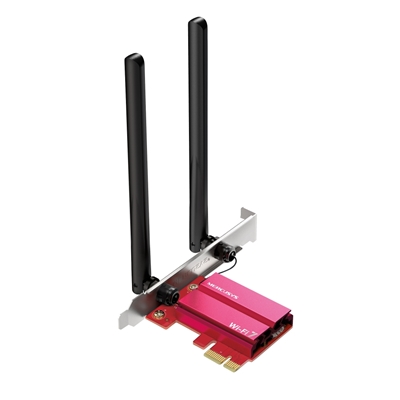

Mercusys MA37BE BE6500 Tri-Band Wi-Fi 7 Bluetooth PCI Express Adapter

Mercusys MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter

Unparalleled Tri-Band Speed
Boost your overall speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)

Wi-Fi 7 Standard
Upgrade your PC with cutting-edge Wi-Fi 7 technology

Better Performance
More devices, lower latency, and less congestion

Bluetooth 5.4
Improved speed, range, security, and reliability over the previous generation

Broader Coverage
Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception

Improved Security
The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Supported Operating Systems
Windows 11 only
Please note: MA37BE is not compatible with the low-profile bracket because of the fixed antennas.

Specifications

Wireless
Wireless Standards
IEEE 802.11 ax/be 6 GHz
IEEE 802.11 a/n/ac/ax/be 5 GHz
IEEE 802.11 b/g/n/ax/be 2.4 GHz

WiFi Speeds
2882 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz

Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions
228 x 120.8 x 21.5 mm (9.0 x 4.8 x 0.85 in )

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents
BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA37BE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements
Compatible with Windows 11(64-bit)

• Internal/External: Internal
• Speed: 6500Mbps
• High-Gain Antenna: Yes
