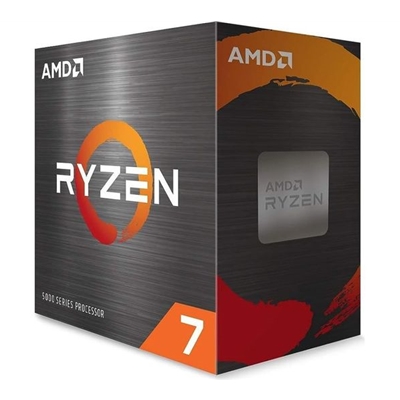

AMD Ryzen 7 5800XT, 8 Core AM4 Processor, 16 Threads, 3.8GHz up to 4.8GHz Boost, 36MB Cache, 105W, No Graphics

AMD Ryzen 7 5800XT

Specifications

Name
AMD Ryzen 7 5800XT

Family
Ryzen

Series
Ryzen 5000 Series

Form Factor
Boxed Processor , Desktops

Former Codename
Vermeer

Processor Architecture
Zen 3

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 4.8 GHz

Base Clock
3.8 GHz

L1 Cache
512 KB

L2 Cache
4 MB

L3 Cache
32 MB

Default TDP
105W

Processor Technology for CPU Cores
TSMC 7nm FinFET

Processor Technology for I/O Die
12nm (Globalfoundries)

CPU Compute Die (CCD) Size
74mm²

I/O Die (IOD) Size
125mm²

Package Die Count
2

Unlocked for Overclocking
Yes

CPU Socket
AM4

Supporting Chipsets
X570 , B550 , A520 , X470 , B450

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax)
90°C

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
0

Native SATA Ports
2

PCI Express Version
PCIe 4.0

Native PCIe Lanes (Total/Usable)
24 , 20

Additional Usable PCIe Lanes from Motherboard
amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2

NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR4

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
Discrete Graphics Card Required

Supported Technologies
AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen? Master Utility , AMD Ryzen? VR-Ready Premium

• Socket: AM4
• On-Chip Graphics: No
• Speed: 4.8GHz
• Core Quantity: 8
• Prefix: Ryzen 7
