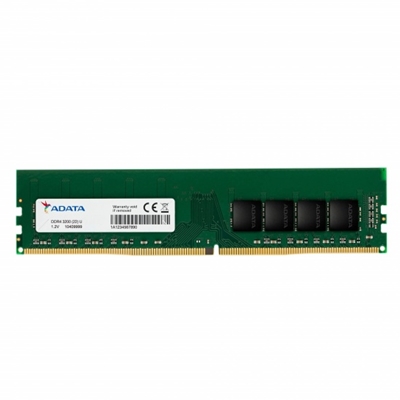

Adata Premier AD4U320038G22-SGN 8GB DIMM System Memory, DDR4, 3200MHz, 1 x 8GB

Premier DDR4 3200 U-DIMM
Retail Boxed

Premier DDR4 3200 U-DIMM represents a new and appealing desktop memory upgrade option, with optimized
support for the latest Intel and AMD
processors and chipset platforms delivering high performance. Meticulous
compliance with JEDEC DDR4 specifications means fast clock frequencies up to 3200MHz combined with 20% power
draw savings compared to DDR3. Premier DDR4 3200 modules therefore boost both performance and environmental
conservation.

Features
High speed up to 3200MHz
Transfer bandwidth up to 25.6GB/s
Energy efficient: saves 20% power compared to DDR3
8-layer PCB provides improved signal transfer and
system stability
Supports Intel Core 8th/9th/10th series and
AMD ZEN 2nd 3rd Ryzen series

Specifications
Module
288-pin DIMM

Densities:
8GB

Power supply
VDD and VDDQ=1.2V +0.06/-0.06V

DRAM activation power supply
VPP = 2.5V (+0.25V / -0.125V)

DRAM VCC
DDR4 STD 1.2V

Operating temperature
0°C to 85°C

Warranty
limited lifetime

• Form Factor: DIMM
• DDR Type: DDR4
• Speed: 3200MHz
• Capacity: 8GB
• RGB: No
